API 6D,API 6A,API 6FA,API 607,JIS,KS | |
Size | 1"~10" |
Rating | 150lb,300lb,600lb |
Materials | WCB,LCB,LCC,CF8,CF8M.Alloy |
Configuration | Unibody or Split Body |
Applications | Chemical,Petrochemical,Oil&Gas,Pulp&Paper |

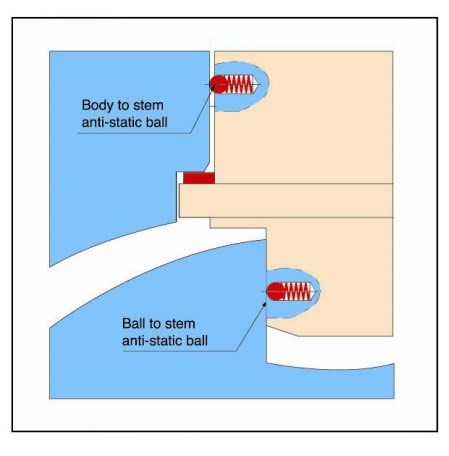

Fire Safe Tested&Certified/Blowout-Proof Stem/Anti-Satic/ Double Sealing Design | |

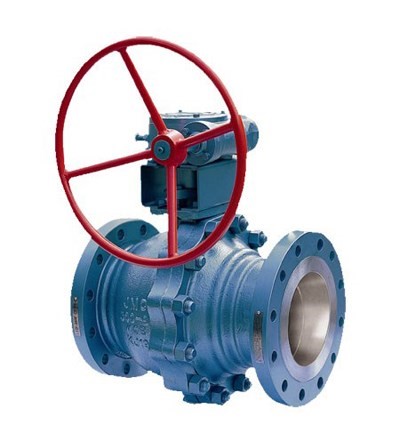

FLOATING BALL VALVE |

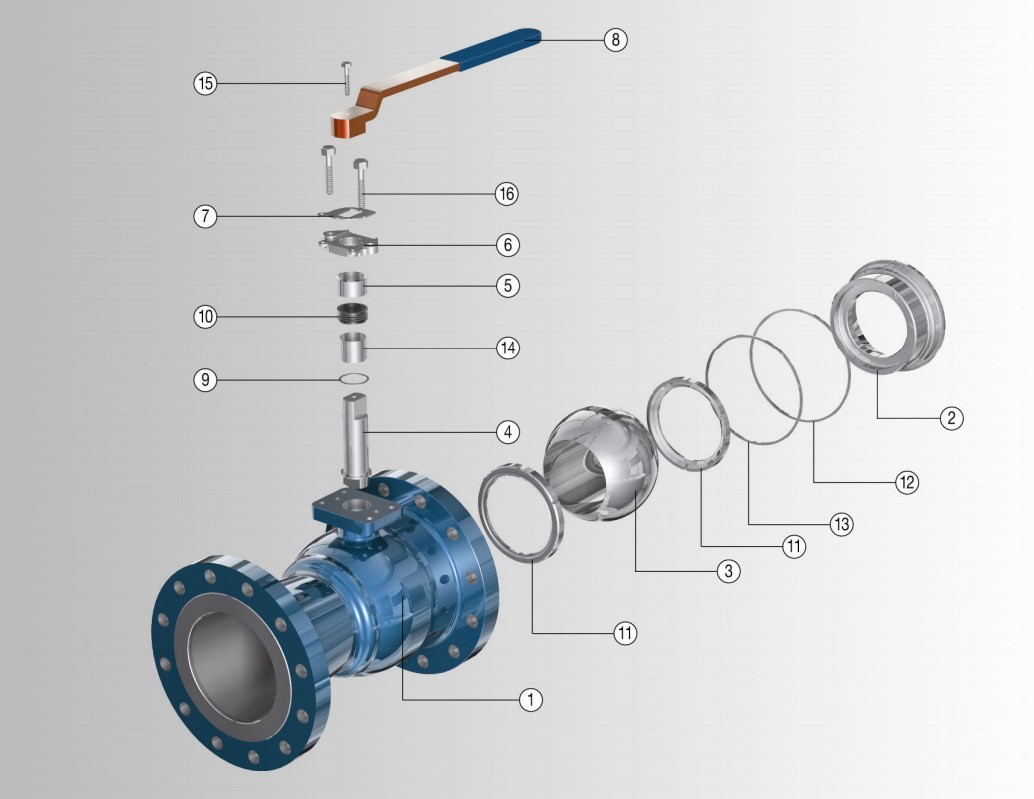

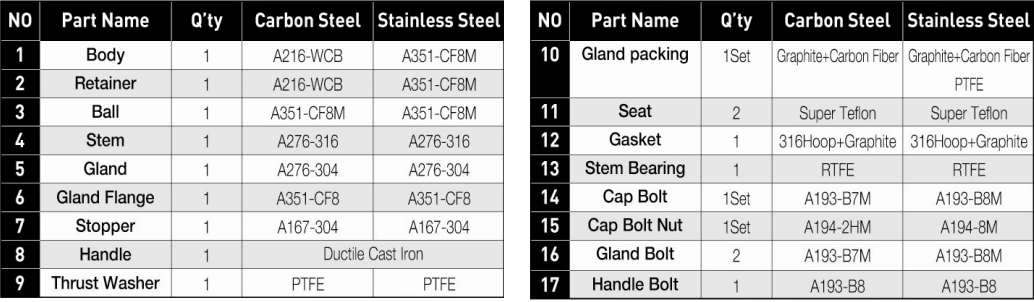

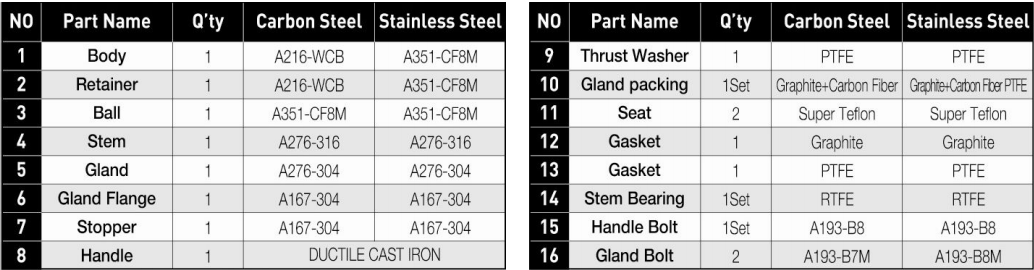

PARTLIST AND STANDARD MATERIAL SPECIFICATIONS |

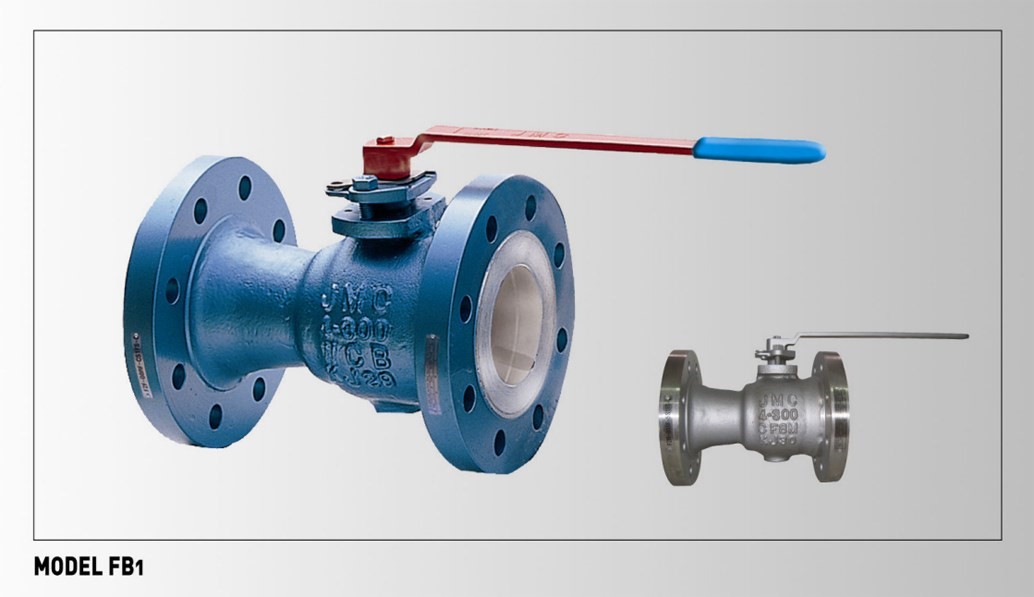

MODEL FB1

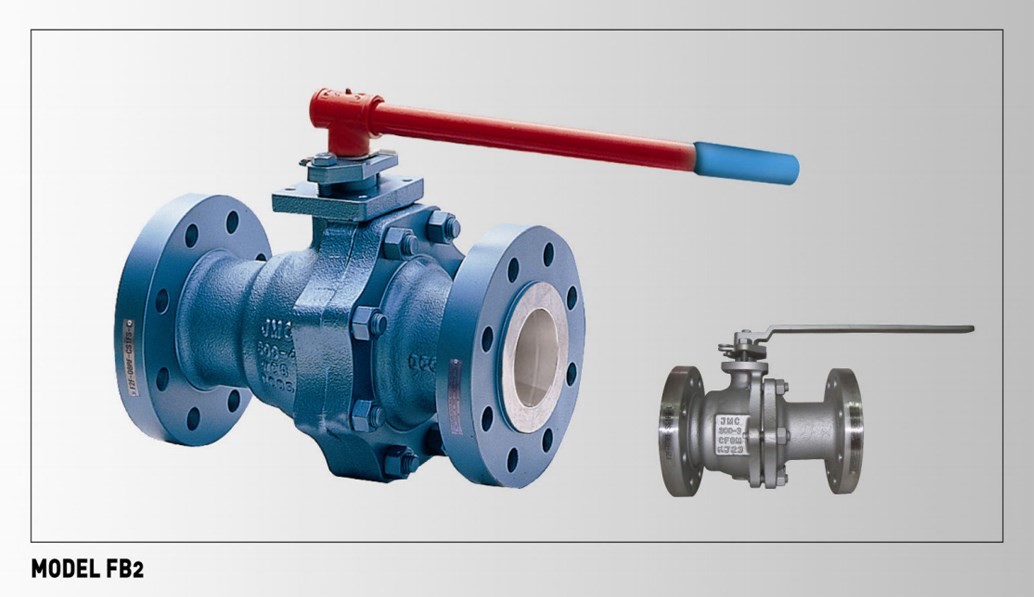

MODEL FB2
DESIGN FEATURES |

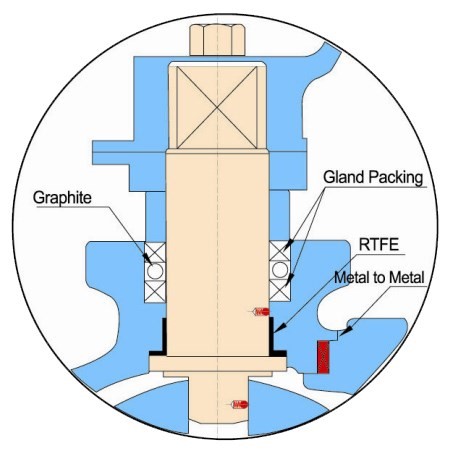

Stem Sealing Design 1 |

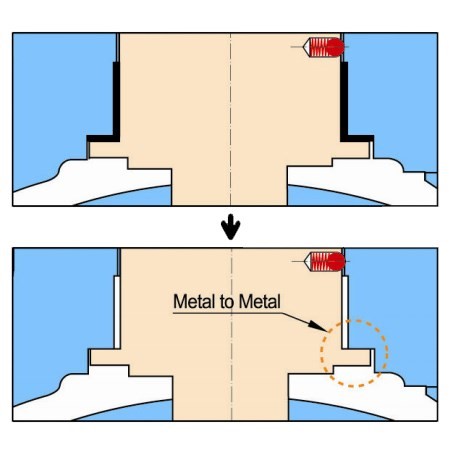

Blowout-Proof Stem and Metal-To-Metal Seal 1 |

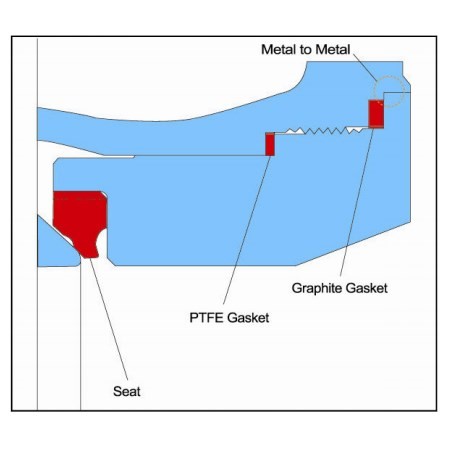

Double Sealing Design and Metal-To-Metal Seal 1 |

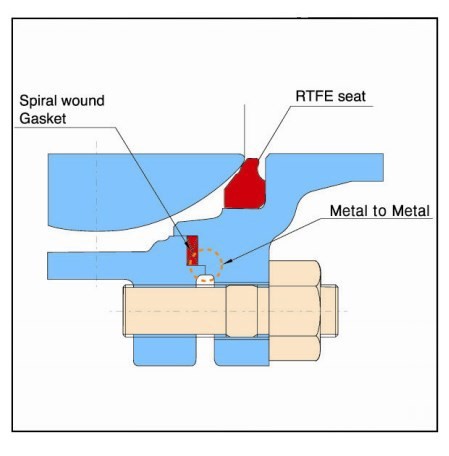

Double Seals at all Joints 1 |
Stem Sealing & Sealant Injection Fitting 1 |

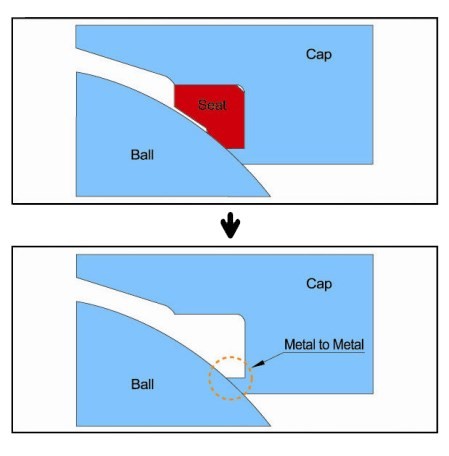

Seat Ring Sealing 1 |
→ CLICK TO DOWNLOAD JMC_FB[1] FLOATING.PDF
